Troubleshoot failure to delete or modify a virtual network or subnet in Azure

Summary

You might receive errors when you try to delete or modify a virtual network or subnet in Microsoft Azure. Resources like gateways, private endpoints, service endpoints, subnet delegations, and orphaned network interfaces can block deletion or modification. This article provides troubleshooting steps to help you resolve these problems.

Troubleshoot virtual network and subnet issues

Virtual network deletion

1. Check whether a virtual network gateway is running in the virtual network.
2. Check whether an application gateway is running in the virtual network.
3. Check whether Azure container instances still exist in the virtual network.
4. Check whether Microsoft Entra Domain Services is enabled in the virtual network.
5. Check whether the virtual network is connected to other resources.
6. Check whether a virtual machine is still running in the virtual network.
7. Check whether the virtual network is stuck in migration.
8. Check whether the virtual network was used by a web app for virtual network integration.

Subnet deletion

1. Check whether private endpoints exist in the subnet.
2. Check whether service endpoints are configured on the subnet.
3. Check whether the subnet has a delegation.
4. Check whether service association links exist on the subnet.
5. Check whether orphaned network interfaces remain in the subnet.
6. Check whether the subnet is used by Azure Bastion or Azure Firewall.

Subnet modification

1. Resize a subnet that contains active resources.
2. Change or remove a subnet delegation.
3. Add or remove service endpoints on an active subnet.

Troubleshooting steps

Check whether a virtual network gateway is running in the virtual network

To remove the virtual network, first remove the virtual network gateway.

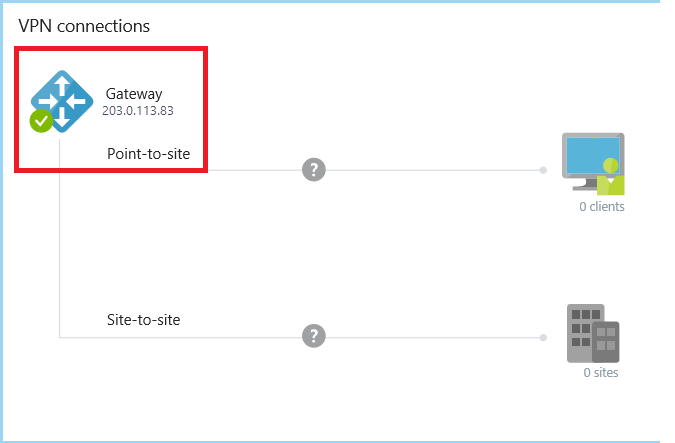

For classic virtual networks, go to the Overview page of the classic virtual network in the Azure portal. In the VPN connections section, if the gateway runs in the virtual network, the IP address of the gateway appears.

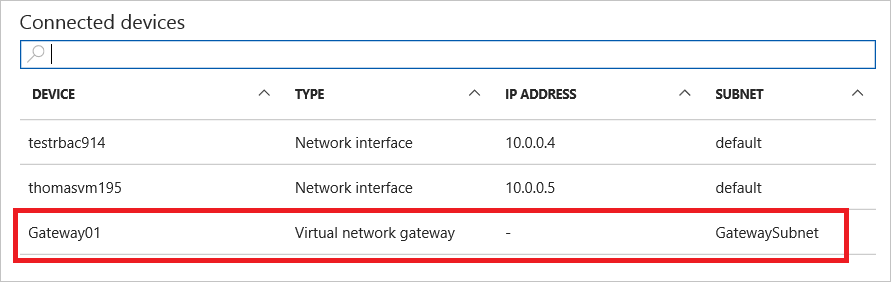

For virtual networks, go to the Overview page of the virtual network. Check Connected devices for the virtual network gateway.

Before you can remove the gateway, remove any Connection objects in the gateway.

Check whether an application gateway is running in the virtual network

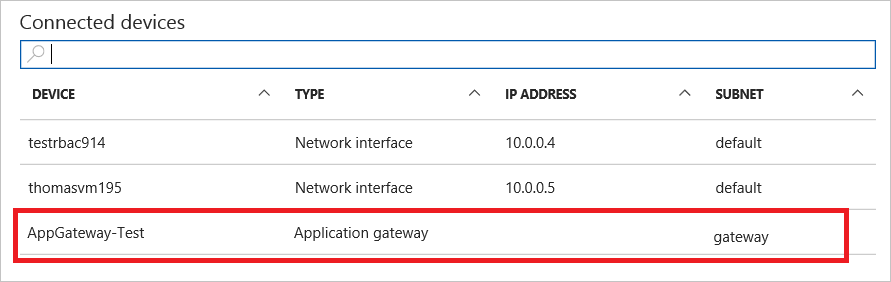

Go to the Overview page of the virtual network. Check the Connected devices for the application gateway.

If there's an application gateway, you must remove it before you can delete the virtual network.

Check whether Azure Container Instances still exist in the virtual network

1. In the Azure portal, go to the resource group's Overview page.

2. In the header for the list of the resource group's resources, select Show hidden types. The portal hides the network profile type by default.

3. Select the network profile related to the container groups.

4. Select Delete.



5. Delete the subnet or virtual network again.

If these steps don't resolve the issue, use these Azure CLI commands to clean up resources.

Check whether Microsoft Entra Domain Services is enabled in the virtual network

If Microsoft Entra Domain Services is enabled and connected to the virtual network, you can't delete this virtual network.

To delete the managed domain, see Delete a Microsoft Entra Domain Services managed domain.

Check whether the virtual network is connected to other resources

Check for circuit links, connections, and virtual network peerings. Any of these resources can cause a virtual network deletion to fail.

Use the following recommended deletion order:

1. Gateway connections
2. Gateways
3. IPs
4. Virtual network peerings
5. App Service Environment (ASE)

Check whether a virtual machine is still running in the virtual network

Make sure that no virtual machine is in the virtual network.

Check whether the virtual network is stuck in migration

If the virtual network is stuck in a migration state, you can't delete it. Run the following command in Azure PowerShell to abort the migration and then delete the virtual network.

Move-AzureVirtualNetwork -VirtualNetworkName "Name" -Abort

Check whether the virtual network was used by a web app for virtual network integration

If you integrated the virtual network with a web app in the past, but you deleted the web app without disconnecting the virtual network integration, see Deleting the App Service plan or web app before disconnecting the virtual network integration.

Troubleshoot subnet deletion failures

Check whether private endpoints exist in the subnet

If a subnet has private endpoints, you can't delete the subnet. You need to remove all private endpoints before you delete the subnet.

1. In the Azure portal, go to the virtual network and select Subnets.
2. Select the subnet you want to delete and check the Private endpoints column.
3. If private endpoints exist, go to each private endpoint resource and delete it.

Alternatively, use Azure CLI to identify private endpoints in a subnet:

az network vnet subnet show \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --query "privateEndpoints[].id" \
    --output tsv

Remove each private endpoint:

az network private-endpoint delete \
    --resource-group <resource-group> \
    --name <private-endpoint-name>

Check whether service endpoints are configured on the subnet

Service endpoints are subnet-level configurations and don't block subnet deletion. As stated in the Azure Virtual Network FAQ, you can delete a subnet even when service endpoints are turned on.

However, if you need to remove service endpoints as part of a broader cleanup or modification, use the following steps:

1. In the Azure portal, go to the virtual network and select Subnets.
2. Select the subnet and check the Service endpoints section.
3. Remove any configured service endpoints and select Save.

Use Azure CLI to check and remove service endpoints:

az network vnet subnet show \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --query "serviceEndpoints[].service" \
    --output tsv

Remove service endpoints by updating the subnet:

az network vnet subnet update \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --service-endpoints '[]'

Check whether the subnet has a delegation

A subnet delegation assigns the subnet to a specific Azure service, like Microsoft.DBforPostgreSQL/flexibleServers, Microsoft.Web/serverFarms, or Microsoft.ContainerService/managedClusters. You can't delete a delegated subnet until you remove all resources that use the delegation and then remove the delegation itself.

Common subnet delegations include:

Use Azure CLI to check delegation:

az network vnet subnet show \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --query "delegations[].{name:name, service:serviceName}" \
    --output table

To remove a delegation, first delete all resources that use the delegated subnet. Then remove the delegation by using the following command:

az network vnet subnet update \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --remove delegations

Check whether service association links exist on the subnet

Azure services like Azure Container Instances, Azure App Service, and Azure SQL Managed Instance create service association links when they deploy resources into a subnet. These links prevent deletion of the subnet even after you remove the deployed resources.

Use Azure CLI to check for service association links:

az network vnet subnet show \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --query "serviceAssociationLinks[].{link:link, linkedResourceType:linkedResourceType}" \
    --output table

If service association links remain after you delete the resources, they might take several minutes to clear. If they persist, try the following steps:

1. Verify no resources from the linked service are still deployed in the subnet.
2. Wait 10-15 minutes for the platform to clean up the links.
3. If the links still persist, open an Azure support request referencing the specific linkedResourceType.

For Azure Container Instances specifically, see Clean up resources for CLI commands to remove container groups and network profiles.

Check whether orphaned network interfaces remain in the subnet

Network interfaces (NICs) left behind after you delete a virtual machine or other resource can block subnet deletion. You must remove each NIC with an IP configuration in the subnet.

Use Azure CLI to list NICs in a subnet:

az network vnet subnet show \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --query "ipConfigurations[].id" \
    --output tsv

The output shows the resource IDs of the IP configurations associated with the subnet. Extract the NIC name from the resource ID and delete the orphaned NIC:

az network nic delete \
    --resource-group <resource-group> \
    --name <nic-name>

If the NIC is still attached to a virtual machine, detach or delete the virtual machine first.

Check whether the subnet is used by Azure Bastion or Azure Firewall

The AzureBastionSubnet and AzureFirewallSubnet subnets are reserved by their respective services. You can't delete these subnets while the associated Azure Bastion or Azure Firewall resource exists.

For Azure Bastion:

1. In the Azure portal, search for Bastions and find the Bastion resource in the same virtual network.
2. Delete the Azure Bastion resource.
3. After the deletion finishes, delete the AzureBastionSubnet.

For Azure Firewall:

1. In the Azure portal, search for Firewalls and find the Firewall resource.
2. Deallocate or delete the Azure Firewall resource.
3. After the deallocation or deletion finishes, delete the AzureFirewallSubnet.
4. Use Azure CLI to check connected resources:

az network vnet subnet show \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name AzureBastionSubnet \
    --query "ipConfigurations[].id" \
    --output tsv

Troubleshoot subnet modification failures

Resize a subnet that contains active resources

You can resize a subnet that has active resources if the new address range still includes all existing IP addresses. If the new range excludes an IP address in use, the resize operation fails.

Before you resize:

1. Use Azure CLI to check the number of used IP addresses in the subnet.

   az network vnet subnet show \
       --resource-group <resource-group> \
       --vnet-name <vnet-name> \
       --name <subnet-name> \
       --query "ipConfigurations | length(@)"


2. Verify the new address prefix accommodates all assigned addresses.

3. Update the subnet.

   az network vnet subnet update \
       --resource-group <resource-group> \
       --vnet-name <vnet-name> \
       --name <subnet-name> \
       --address-prefixes <new-prefix>


Change or remove a subnet delegation

You can't change a subnet delegation while resources from the current delegation are deployed. To change the delegation:

1. Remove all resources that use the current delegation (for example, delete the flexible server or app service plan).

2. Use Azure CLI to remove the existing delegation.

   az network vnet subnet update \
       --resource-group <resource-group> \
       --vnet-name <vnet-name> \
       --name <subnet-name> \
       --remove delegations


3. Add the new delegation.

   az network vnet subnet update \
       --resource-group <resource-group> \
       --vnet-name <vnet-name> \
       --name <subnet-name> \
       --delegations <new-service-delegation>


Add or remove service endpoints on an active subnet

Changing service endpoints on an active subnet can cause a brief connectivity disruption to the target service. Plan endpoint changes during a maintenance window.

Use Azure CLI to add a service endpoint.

az network vnet subnet update \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --service-endpoints Microsoft.Storage Microsoft.Sql

To remove a specific service endpoint, specify only the endpoints you want to keep.

az network vnet subnet update \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --service-endpoints Microsoft.Storage

Common error messages

Diagnostic commands

Use the following Azure CLI command to get a comprehensive view of all resources and configurations that might block subnet deletion or modification:

az network vnet subnet show \
    --resource-group <resource-group> \
    --vnet-name <vnet-name> \
    --name <subnet-name> \
    --query "{addressPrefix:addressPrefix, delegations:delegations[].serviceName, serviceEndpoints:serviceEndpoints[].service, ipConfigurations:ipConfigurations[].id, privateEndpoints:privateEndpoints[].id, serviceAssociationLinks:serviceAssociationLinks[].linkedResourceType}" \
    --output json

This command returns:

• addressPrefix: The current address range of the subnet.
• delegations: Services the subnet is delegated to.
• serviceEndpoints: Configured service endpoints.
• ipConfigurations: NICs and other resources with IP addresses in the subnet.
• privateEndpoints: Private endpoints associated with the subnet.
• serviceAssociationLinks: Services that deployed resources into the subnet.

If any of these fields contain values, you must remove those resources before you can delete or modify the subnet.
