Extensibility points

Azure DevOps Services | Azure DevOps Server | Azure DevOps Server 2022

Extensions add capabilities to the Azure DevOps UI and REST surface. This article lists the most common extensibility points you can target and shows the IDs you use in your extension manifest. For the full manifest schema, see the Extension manifest reference. For an overview of the extension model and contribution patterns, see the Contribution model.

Hubs and hub groups

Hubs and hub groups provide primary navigation in Azure DevOps (for example, Files, Releases, Backlogs, Queries). A hub belongs to a hub group; for example, the Files hub belongs to the project-level Azure Repos hub group. Hub groups can exist at the organization/collection level or at the project level. Most extensions contribute at the project level.

The following table lists common hub groups and their contribution IDs.

Name	ID	Level	Preview image
Azure Boards	ms.vss-work-web.work-hub-group	Project/team
Azure Repos	ms.vss-code-web.code-hub-group	Project/team
Azure Pipelines	ms.vss-build-web.build-release-hub-group	Project/team
Azure Test Plans	ms.vss-test-web.test-hub-group	Project/team
Project settings	ms.vss-web.project-admin-hub-group	Project
Organization settings	ms.vss-web.collection-admin-hub-group	Organization/collection

Contribute a hub

This example shows a hub contribution that targets the Code hub group:

{
  "contributions": [
    {
      "id": "my-custom-hub",
      "type": "ms.vss-web.hub",
      "targets": [
        "ms.vss-code-web.code-hub-group"
      ],
      "properties": {
        "name": "Code Hub",
        "order": 30,
        "uri": "/views/code/custom.html"
      }
    }
  ]
}

• ms.vss-web.hub — the contribution type. The vss-web extension published by ms defines this type and its required and optional properties, such as name and order.
• ms.vss-code-web.code-hub-group — the full ID of the hub group this hub targets.
• my-custom-hub — the short ID of this contribution. The full ID is {publisherId}.{extensionId}.my-custom-hub.

The following table lists the properties available for ms.vss-web.hub contributions:

Add an icon to a menu or toolbar

Use the icon or iconName property in your contribution to display an icon. Provide your own icon when possible.

Custom icon:

"properties": {
    "name": "Sample hub",
    "uri": "dist/Hub/Hub.html",
    "icon": "asset://static/sample-icon.png",
    "supportsMobile": true
}

Fluent UI icon:

"properties": {
    "iconName": "Code",
    "name": "Code Hub",
    "order": 30,
    "uri": "/views/code/custom.html"
}

Settings for menus and toolbars

These targets apply to organization and project administration pages, not to service-specific hubs like Azure Boards or Azure Repos.

Azure Boards menu and toolbar

Name	Target ID	Preview image
Work item query menu	ms.vss-work-web.work-item-query-menu
Work item query results toolbar menu	ms.vss-work-web.work-item-query-results-toolbar-menu
Work item query results menu item	ms.vss-work-web.query-result-work-item-menu
Work item query results tab	ms.vss-work-web.query-tabs
Work item for context menu	ms.vss-work-web.work-item-toolbar-menu
Backlog item menu	ms.vss-work-web.backlog-item-menu
Sprint board pivot filter menu	ms.vss-work-web.sprint-board-pivot-filter-menu
Board pivot filter menu	ms.vss-work-web.backlog-board-pivot-filter-menu
Card menu	ms.vss-work-web.backlog-board-card-item-menu
Product backlog tab	ms.vss-work-web.product-backlog-tabs
Iteration backlog tab	ms.vss-work-web.iteration-backlog-tabs
Portfolio backlog pane	ms.vss-work-web.portfolio-backlog-toolpane
Product backlog pane	ms.vss-work-web.requirement-backlog-toolpane
Iteration backlog pane	ms.vss-work-web.iteration-backlog-toolpane

Azure Pipelines menu and toolbar

Name	Target ID	Preview
Completed build menu	ms.vss-build-web.completed-build-menu
Test results toolbar action	ms.vss-test-web.test-results-actions-menu
Test result details tab	ms.vss-test-web.test-result-details-tab-items
Release pipeline explorer context menu	ms.vss-releaseManagement-web.release-definition-explorer-context-menu
Pipeline details view, header button	ms.vss-build-web.pipelines-header-menu
Pipeline details view, folder context menu	ms.vss-build-web.pipelines-folder-menu

Azure Pipelines tasks

Tasks perform work in a build or release pipeline. For more information, see Add a custom pipelines task extension.

Azure Repos menu and toolbar

Name	Target ID	Preview image
Source item (grid) menu	ms.vss-code-web.source-grid-item-menu
Source item (tree) menu	ms.vss-code-web.source-tree-item-menu
Source item (grid and tree) menu	ms.vss-code-web.source-item-menu
Change list item menu	ms.vss-code-web.change-list-item-menu
Change list summary item menu	ms.vss-code-web.change-list-summary-item-menu

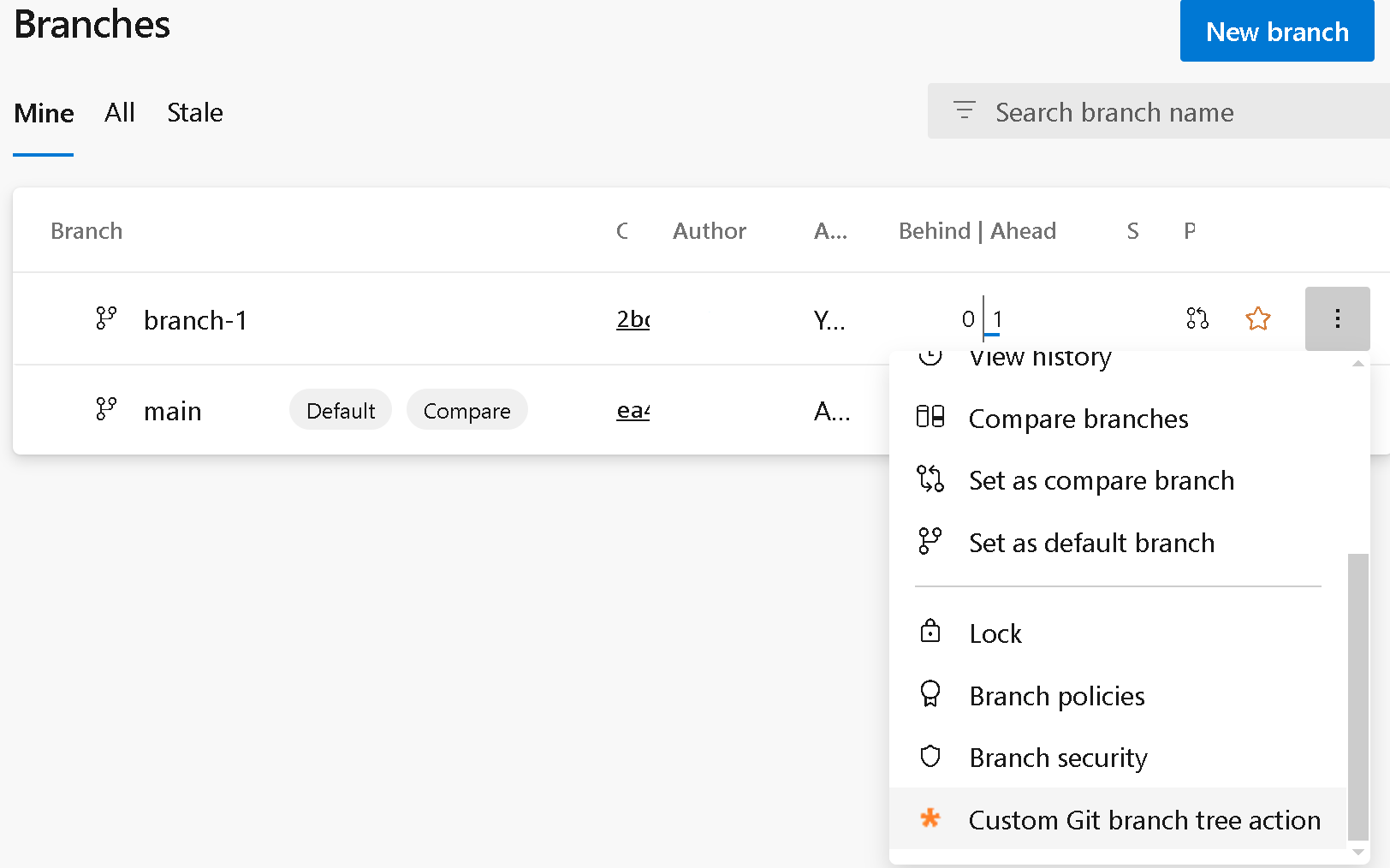

Git branches tree menu	ms.vss-code-web.git-branches-tree-menu

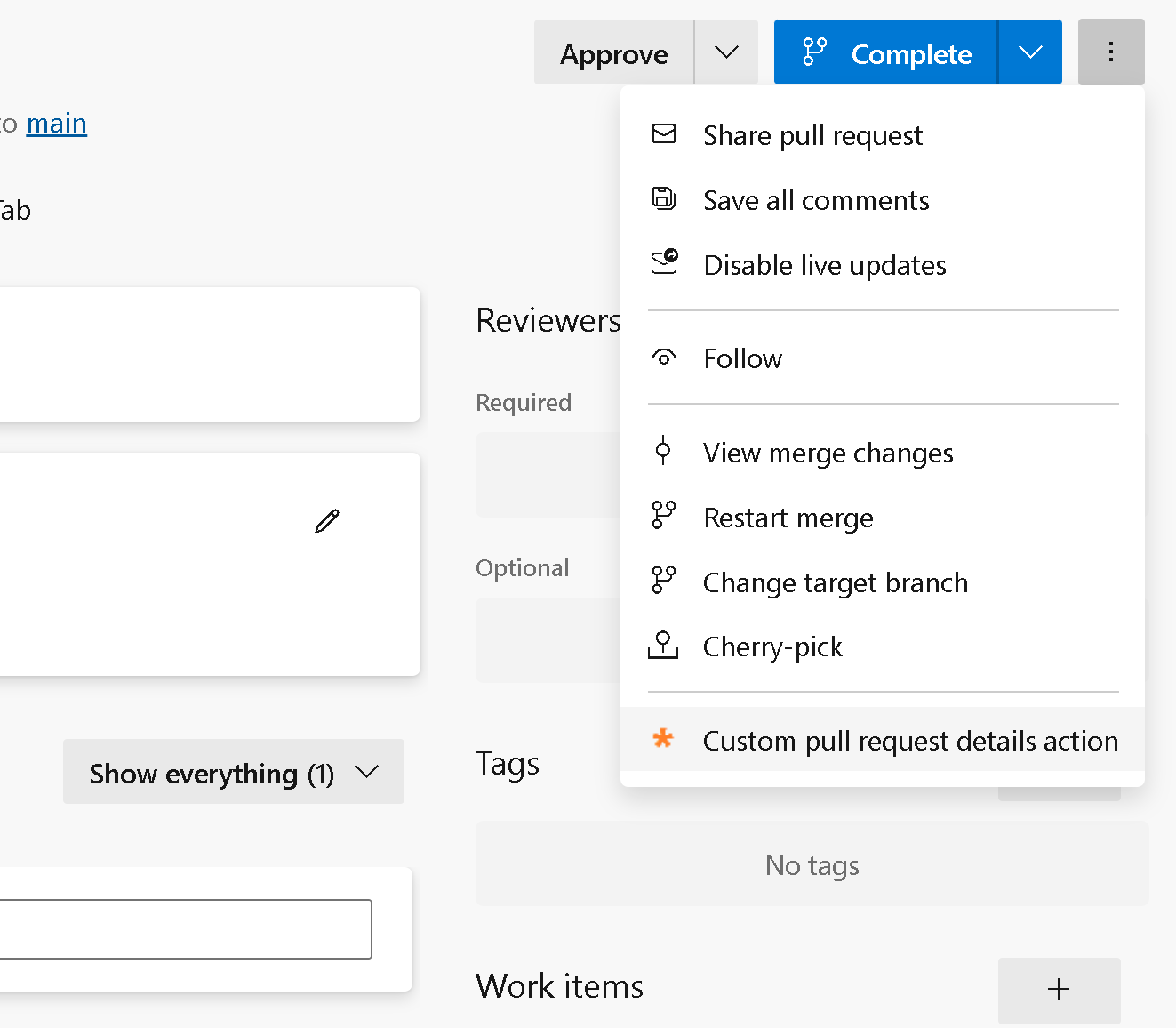

Git pull request actions menu	ms.vss-code-web.pull-request-action-menu

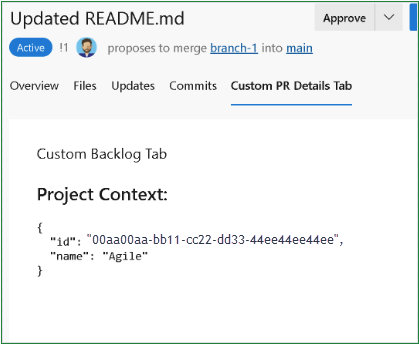

Git pull request tabs (pivots)	ms.vss-code-web.pr-tabs

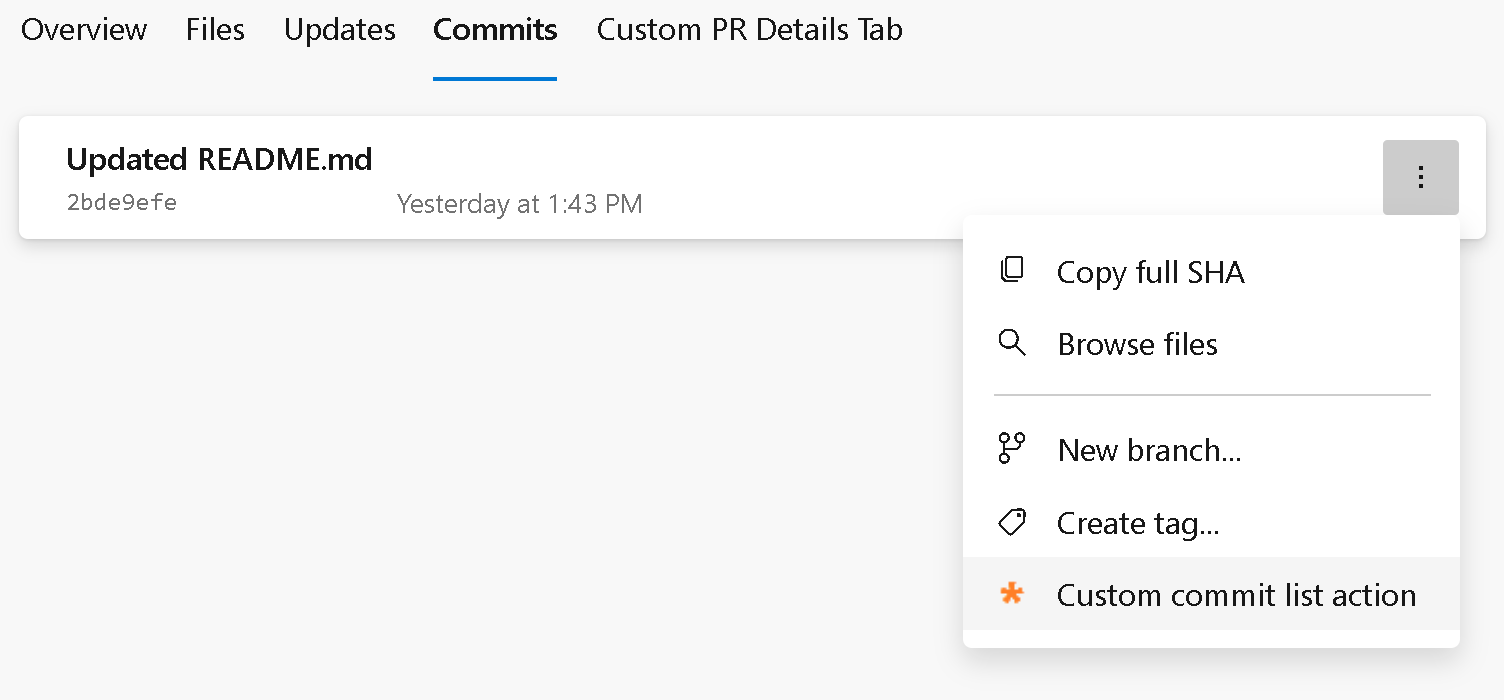

Git commit listing menu	ms.vss-code-web.git-commit-list-menu

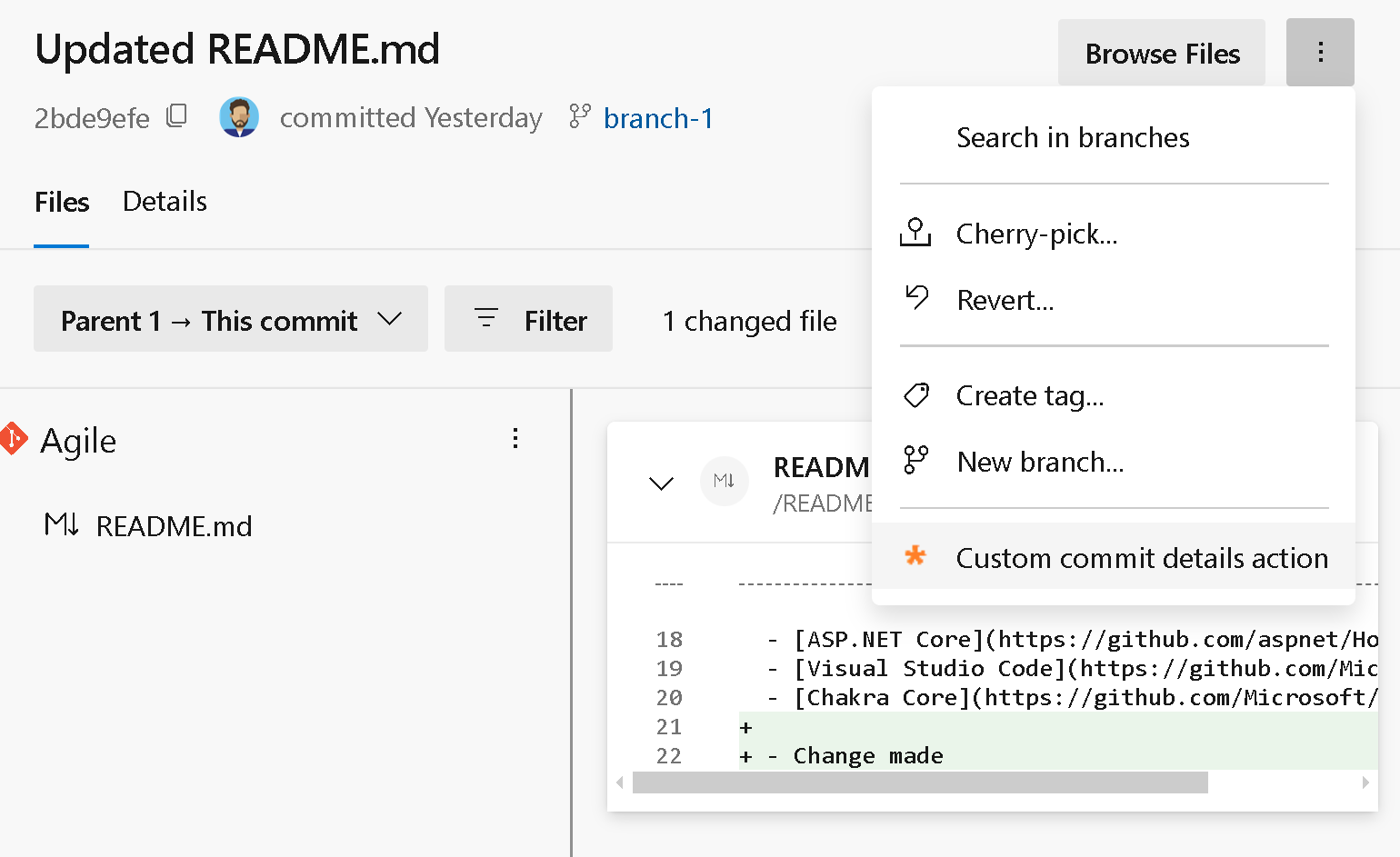

Git commit detail menu	ms.vss-code-web.git-commit-details-menu

Azure Test Plans menu and toolbar

Name	Target ID	Preview image
Test run grid menu	ms.vss-test-web.test-run-grid-menu
Test plan suites tree menu	ms.vss-test-web.test-plans-suites-context
Test plan hub pivot tab	ms.vss-test-web.test-plan-pivot-tabs

Other extensibility points

• Dashboard widget — Contribute a new widget type that users can add to a dashboard. See Contribute a dashboard widget.
• Work item form — Add sections, tabs, actions, or custom field renderers to the work item form. See Extend the work item form.
• Service hooks consumer — Contribute a consumer service that receives events from Service Hooks. See Create a custom consumer for Service Hooks.
