Microsoft Surface 7 Laptop with 3 external monitors

Question

Microsoft Surface 7 Laptop with 3 external monitors

Redl, Greg 0

I have an Surface Laptop 6 that displays 3 external monitors, but I can't get my new Surface laptop 7 to display more than 2 external monitors.

Two (2) are connected to the Surface Dock 2, USB-C to DP (active), and work in addition to the laptop LCD. The third (3rd) monitor is connected to the USB-C/Thunderbolt port on the side of the laptop. This setup is exactly what I use for the Surface Laptop 6 and it works.

When I connect the third external monitor to either USB-C, on the Surface Laptop 7, I receive "USB Device might need more power. Your PC might not provide enough power to the USV device. Please connect your device to external power or try using a different PC"

That third monitor is detected within Display Settings, but extending the display then removes one of the monitors connected to the Surface Dock 2. Surely there's a way to connect 3 monitors to this Surface Laptop 7?

0 comments

2 answers

Your answer

Answer 1

Lychee-Ng 16,890 Microsoft External Staff Moderator

Hi Redl, Greg,

I can see why this is confusing. You’re using the exact same dock, cables, and monitors that worked perfectly with the Surface Laptop 6, yet the Surface Laptop 7 behaves differently.

One thing I noticed that wasn’t mentioned yet is how the third external monitor is connected. Is it using a USB‑C to DisplayPort cable, a USB‑C to HDMI adapter, or another type of connection? The reason I ask is that I’ve seen quite a few Surface Laptop 7 display issues where DisplayPort turned out to be the key factor.

So if that third monitor is currently using HDMI or a different adapter, it may be worth trying a DisplayPort connection as well, in addition to what Q&A Assist has already suggested.

I hope this small insight helps move things in the right direction.

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Redl, Greg 0 Reputation points

2026-04-01T13:54:56.2+00:00

I have tried both USB-C to DP and USB-C to HDMI, both DP Alt rated, to either of the USB-C/Thunderbolt ports on the side of the Surface Laptop 7. Both trigger the "USB Device might need more power." but transfers the display from one of the working dock connected monitors to the monitor connected to the laptop.

Correct if wrong, but doesn't the triggered prompt indicate the Surface Dock 2 is not supplying enough power to the laptop to support the Thunderbolt requirement?

Also, is it true that although the Surface Thunderbolt Dock 4 has three (3) USB-C/Thunderbolt ports it does not actually support the use of all three at the same time for monitors?
Lychee-Ng 16,890 Reputation points Microsoft External Staff Moderator

2026-04-01T14:05:17.62+00:00

It seems so, yes. The Surface 7 uses Qualcomm Snapdragon X (ARM) processors, which from users' reports, have a hardware‑level limit of 2 external displays. Plus the Surface Dock 2 is an older version. The most recent working setup I saw was Surface Dock 4 connecting to 2 monitors, and a DisplayPort direct connecting to the third. Not sure if it helps with your situation though.

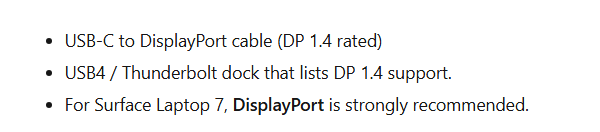

Also, see if you can try out the DP 1.4 rated instead. Here's the recommendations:
Redl, Greg 0 Reputation points

2026-04-01T15:41:22.88+00:00

My Surface Laptop 7 has the Intel Core Ultra5 238V CPU and Intel Arc 130V GPU; whereas, the Surface Laptop 6 has the lower grade Intel Core Ultra 5 135H and the Intel Arc. I am aware that other models do contain the Qualcomm but that is not my case.

All my monitors are connected USB-C to DP, and those cables are DP Alt/1.4 rated. The issue seems to be that the Surface Dock 2 can't supply enough power to the laptop to power that third one.

Should I be looking for an aftermarket docking station that can supply the 3 externals, or replacing with 2 larger ones to retain the screen space? If the dock, can you recommend one?
Lychee-Ng 16,890 Reputation points Microsoft External Staff Moderator

2026-04-02T06:13:13.6566667+00:00

My setup is not Surface so I cannot be for sure. But like I mentioned in my previous comment, one working setup I've seen used Dock 4 instead of 2 (and they still have to direct connect the third monitor). Overall, if you can test your dock with multiple displays before actually buying would be the best circumstance.
Redl, Greg 0 Reputation points

2026-04-02T22:15:17.96+00:00

It's a $400 gamble on the Thunderbolt Dock 4, as I only have Dock 2 on hand.

Any chance one of your colleagues in Microsoft will confirm that 2 monitors connected to the Thunderbolt 4 Dock and 1 monitor connected to either port on the Surface Laptop 7 will allow for the 3 external monitors plus the laptop LCD?
Lychee-Ng 16,890 Reputation points Microsoft External Staff Moderator

2026-04-03T06:25:56.5866667+00:00

Really unfortunate but I need to clarify something. Microsoft Q&A is a user-to-user support forum, for providing guidance on technical issues based on our own experience and knowledge. Moderators, contributors, including external Microsoft staff, do not have any direct connection with Microsoft. Which also means I don't have a "colleague in Microsoft" I can ask (though sometimes I do wish I have one too).
Redl, Greg 0 Reputation points

2026-04-07T16:22:42.5633333+00:00

Sorry, saw 'Microsoft External Staff' and assumed.
Will have to weigh the options with the information you provided and hope that results in fixing the issue

Answer 2

Surface Laptop 7 can drive multiple external displays, but the total number and configuration depend on the GPU/output capabilities and how the dock and USB-C/Thunderbolt ports share bandwidth. The behavior described indicates the device is hitting its maximum supported number of independent display outputs, so when the third monitor is enabled, one of the others is disabled.

Key points and actions:

Understand multi‑monitor limits
Windows will detect more monitors than the GPU can actively drive, but only up to the supported number can be used in “Extend” mode at once. When the limit is reached, enabling one extended display will cause another to turn off, which matches the described behavior.
Avoid simple splitters for extra displays
If any of the connections use a simple display splitter (one port to two monitors), it will only duplicate the signal and cannot create additional independent displays. For more than one external monitor from a single port, a proper dock or USB display adapter is required, not a passive splitter.
Use a dock or USB display adapter for more outputs
If the Surface Laptop 7’s built‑in GPU/output path is limited to two external displays, adding a third extended display typically requires:
- A docking station that explicitly supports three external monitors for this model, or
- A USB display adapter (for example, USB‑C to DisplayPort/HDMI using a display adapter chipset) to add an additional video output path.
Windows guidance for adding more than one external monitor is:
- If the device only has one video output, a dock or USB adapter is needed to support additional external monitors.
Check cables, adapters, and power
- Use high‑quality, certified USB‑C/Thunderbolt and display cables, ideally USB4/Thunderbolt 4 certified where applicable.
- Ensure the dock and the laptop are connected to their power supplies so that the USB‑C/Thunderbolt port is not power‑limited. The “USB device might need more power” message suggests the side‑port connection may be drawing more power than the port is willing to provide in the current configuration.
- When possible, use the same connection type end‑to‑end (USB‑C to USB‑C, or USB‑C to DisplayPort, etc.) and keep cables short and within the recommended spec.
Try a different connection type for the third monitor
- If the third monitor is currently using HDMI via an adapter, try DisplayPort instead (or vice versa), as some users have resolved display issues on Surface Laptop 7 by switching from HDMI to DisplayPort.
If previously working on another Surface
The fact that Surface Laptop 6 could drive three external monitors with the same physical setup does not guarantee the same capability on Surface Laptop 7, as internal GPU/output limits and how ports are wired can differ between generations. In this case, the observed behavior is consistent with Surface Laptop 7 reaching its supported external display limit.

If three independent external monitors are required, the practical path is to use a dock or USB display adapter solution that is explicitly designed and tested to provide three external displays for Surface Laptop 7, rather than relying on the built‑in ports alone.
